GENERAL INFO
SPEEDS:
1 x 9
WEIGHT:
29.3 kg (64.6 lb)
GEAR INCHES:
23" - 89" (1.87 - 7.13 m)
FRAME SIZES:
One size
DISTANCE: SEATPOST TO HANDLEBAR:
60 - 64 cm (23.6 - 25.2 in)
DISTANCE: SADDLE TO PEDAL:
76 - 99 cm (29.9 - 39 in)
SUGGESTED RIDER HEIGHT:
155 - 185 cm (61 - 72.8 in)
MAX GROSS VEHICLE WEIGHT:
190 kg (418.9 lb)
MAX RIDER WEIGHT:
120 kg (264.6 lb)
FRAME
FRAME:
Tern Quick Haul Long, Patented Design, 6061-AL, DIN 79010 certified: 190 kg (419 lb)
FORK:
Cargo, Aluminum alloy, DIN 79010 certified: 190 kg (419 lb)
COCKPIT

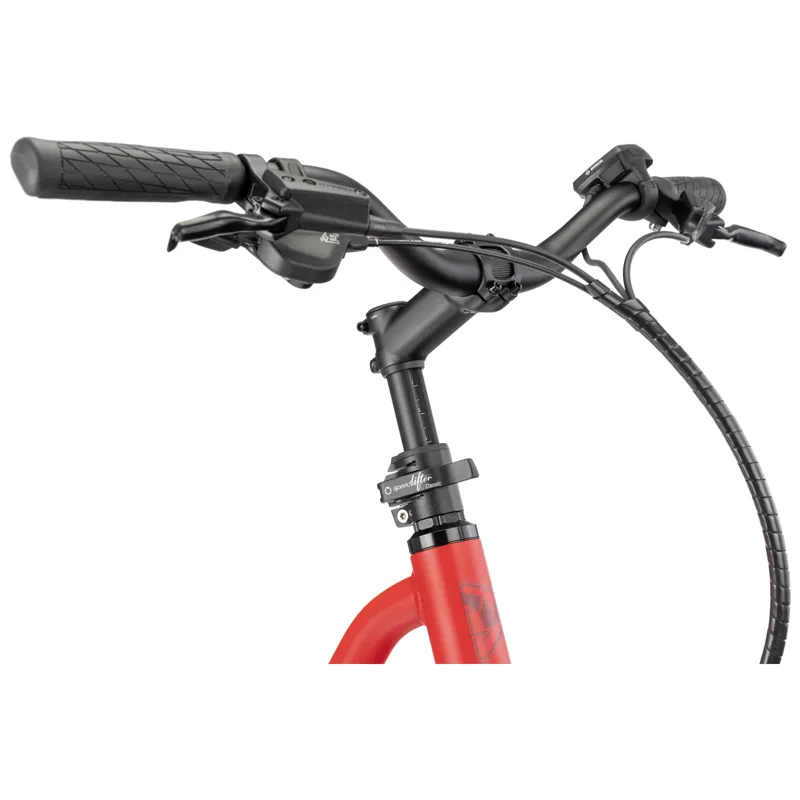

STEM:
Speedlifter, adjustable, 3D forged stem, 31.8
HEADSET:
TH, cartridge bearings
HANDLEBAR:
Low riser ergo, 31.8, 6061-AL
GRIPS/BAR TAPE:
Velo ergonomic, lock-on
SADDLE:
Velo Comfort
SEATPOST:
34.9 mm, 6061-AL, micro-adjust clamp
SEATPOST CLAMP:
Tern Collar
BRAKES
FRONT BRAKE:
Tektro hydraulic disc
REAR BRAKE:
Tektro hydraulic disc
BRAKE LEVERS:
Tektro hydraulic disc
WHEELS
FRONT HUB:
Disc, aluminum
REAR HUB:
9 spd, disc, aluminum, Boost
SPOKES & NIPPLES:
Stainless steel
RIMS:
Tern Atlas H, cargo
TYRES:
Schwalbe Pick Up, 60-406, Super Defense puncture protection, Reflex
TRANSMISSION
SHIFTER(S):
Tektro, 1 x 9 spd, trigger
REAR DERAILLEUR:
Tektro custom for Tern, 1 x 9 spd
CRANKSET:
Tern custom, forged 6061-AL crankarm, anti-drop chainring
CASSETTE/FREEWHEEL:
Tektro 11-42T, 9 spd
BOTTOM BRACKET:
Motor integrated
CHAIN:
KMC for eBike, 9 spd
PEDALS:
Urban with non-slip surface
SHIFTER CABLE & HOUSING:
SP
E-SYSTEM

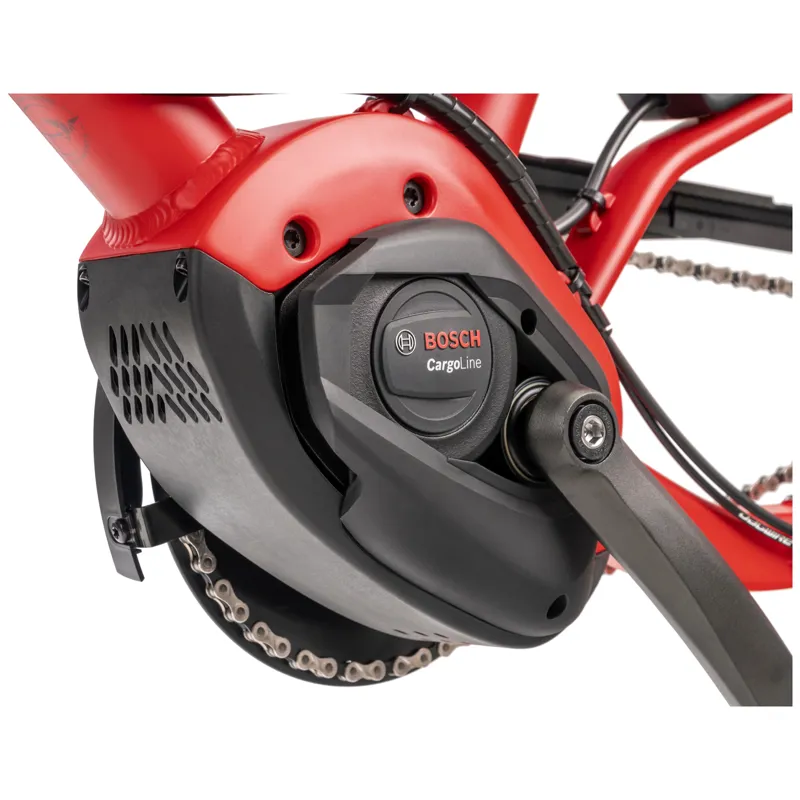

MOTOR:
Bosch Cargo Line, 400% Assist, 85 Nm Torque

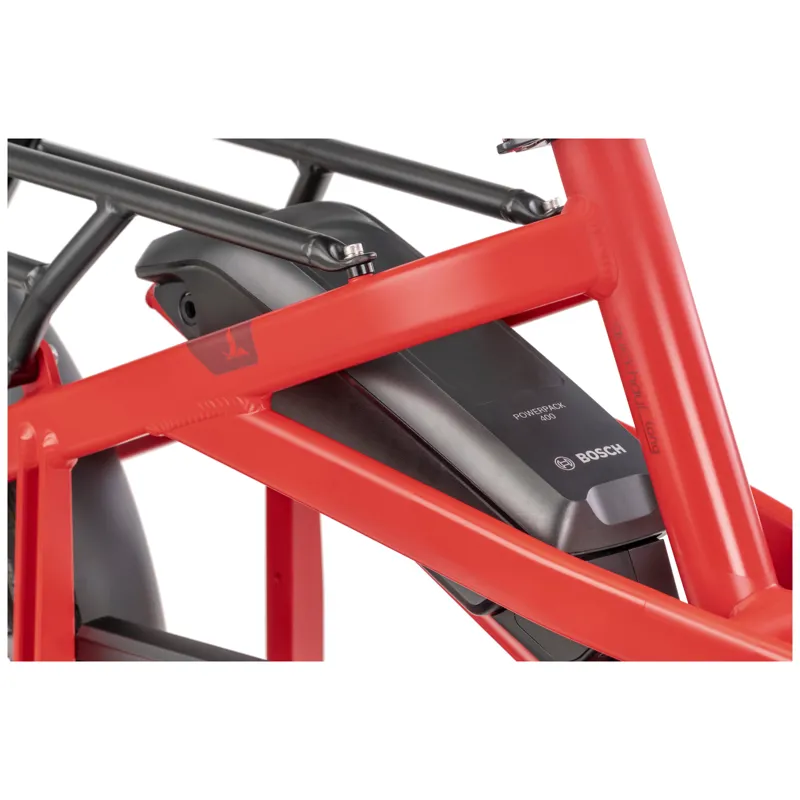

BATTERY:
Bosch PowerPack 400

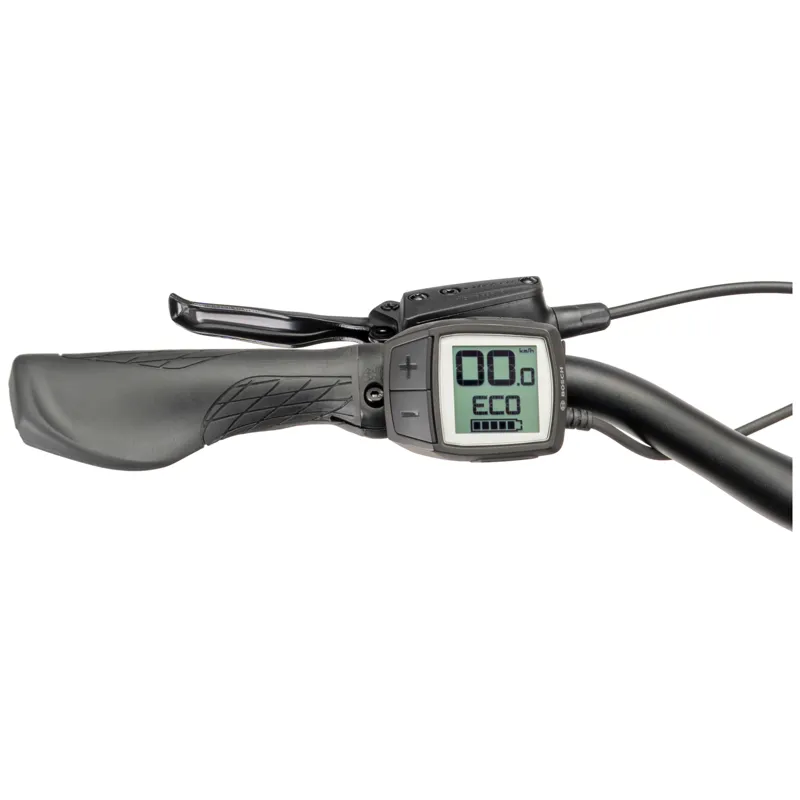

DISPLAY:
Bosch Purion, 4 mode selectable, walk assist
RANGE:
400 Wh: 42-85 km (26-53 mi)
CHARGER:
220V, 4A (EU); 100-240V, 4A (US)
BELLS & WHISTLES
BELL:
Aluminum
CHAINGUARD:
SKS Chainblade

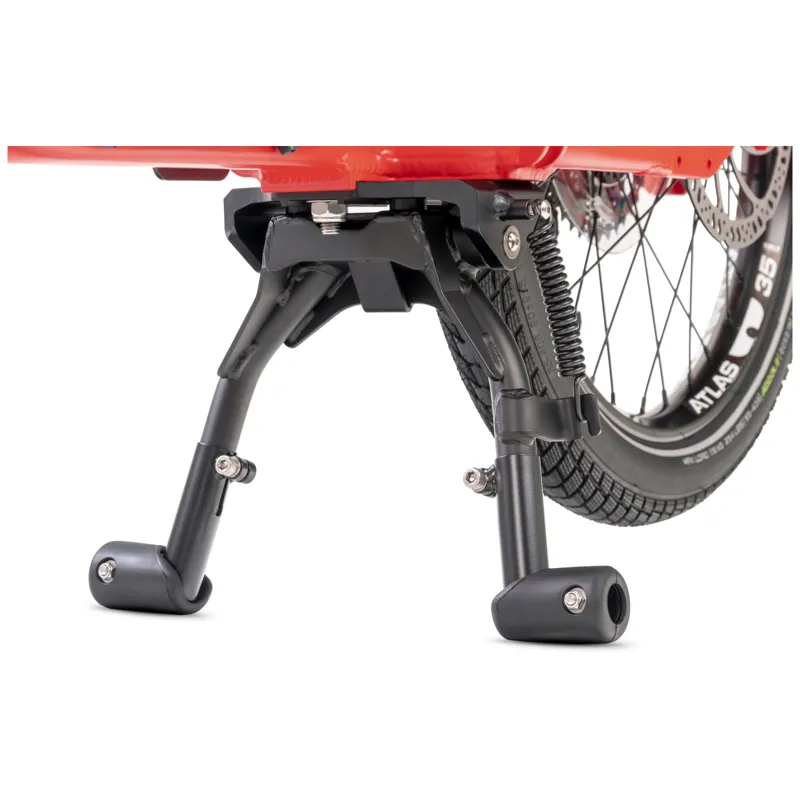

KICKSTAND:
Atlas Kickstand, for cargo

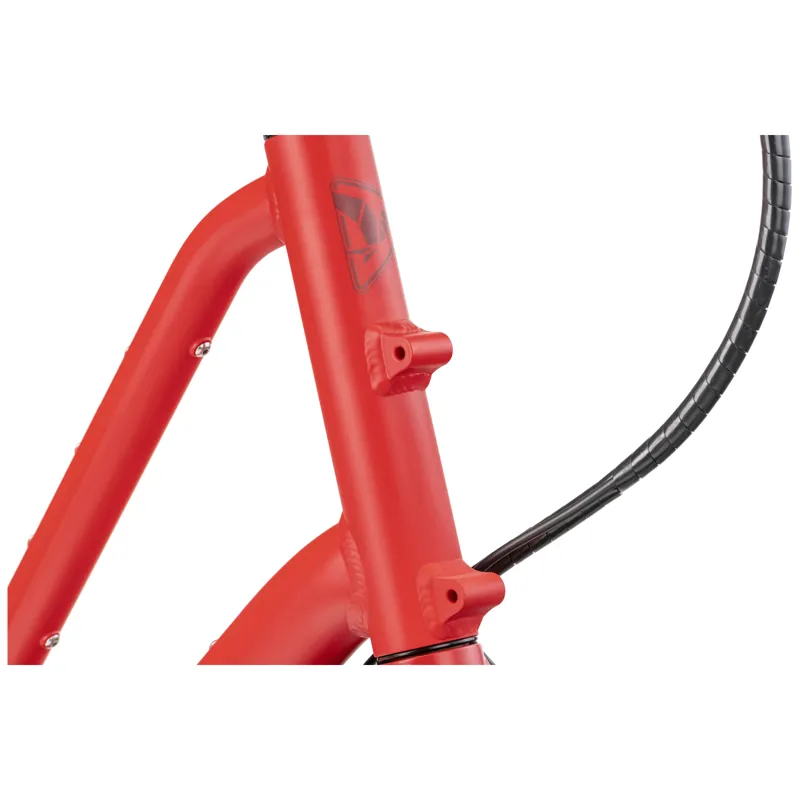

LUGGAGE SOCKET:
Combo Mount

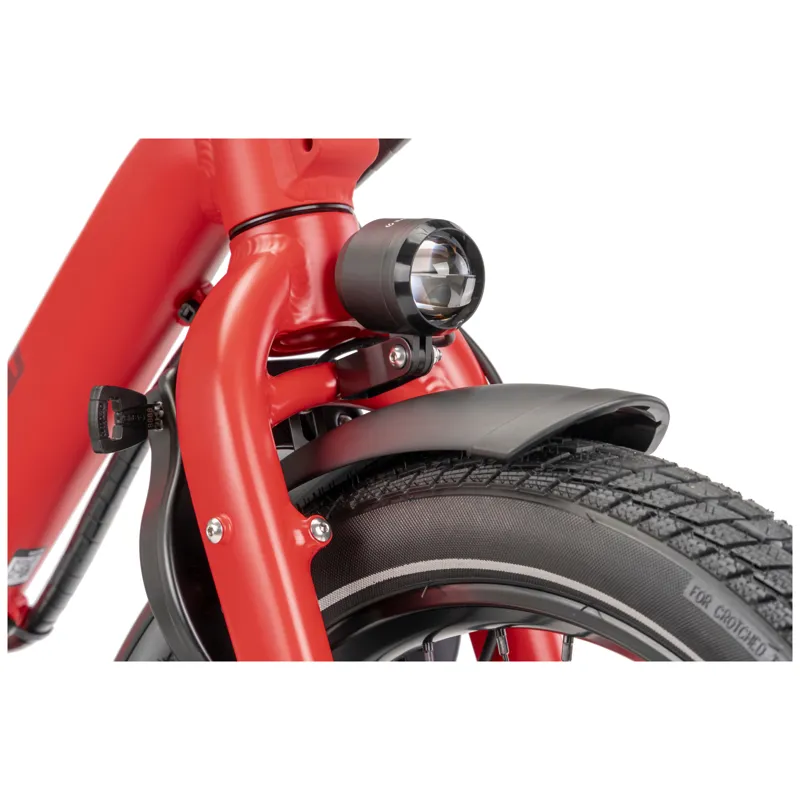

FRONT LIGHT:
90 lux, StVZO approved
REAR LIGHT:
Herrmans
MUDGUARDS:
SplashGuard, stainless hardware
RACK(S):
Atlas L, 90 kg (198 lb) capacity

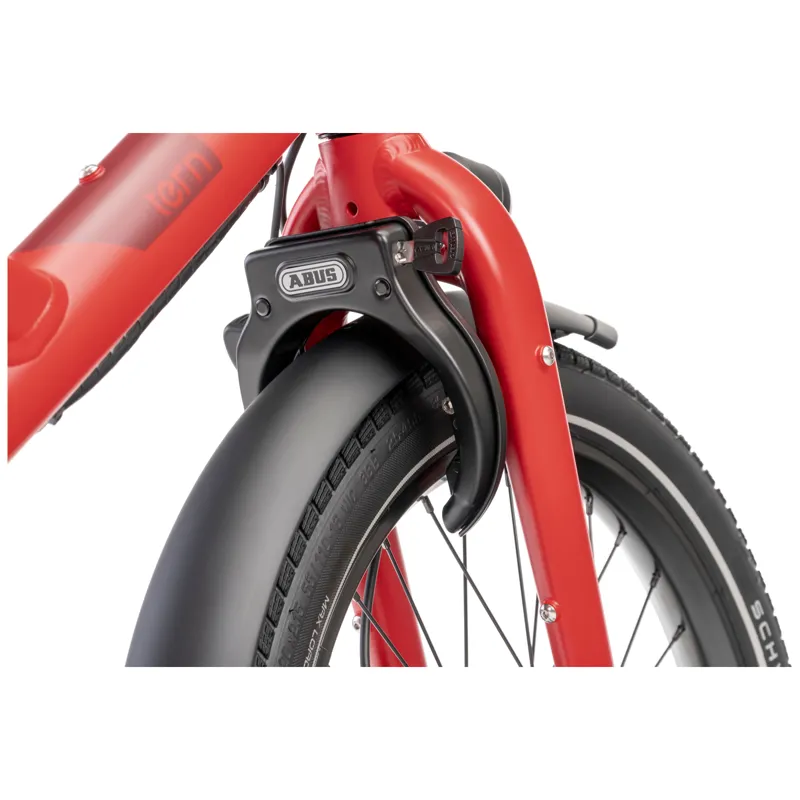

FRAME LOCK:
ABUS or AXA, keyed-alike with Bosch battery
PLEASE NOTE THAT, BASED ON COMPONENT AVAILABILITY AND OTHER FACTORS, SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
