Tern

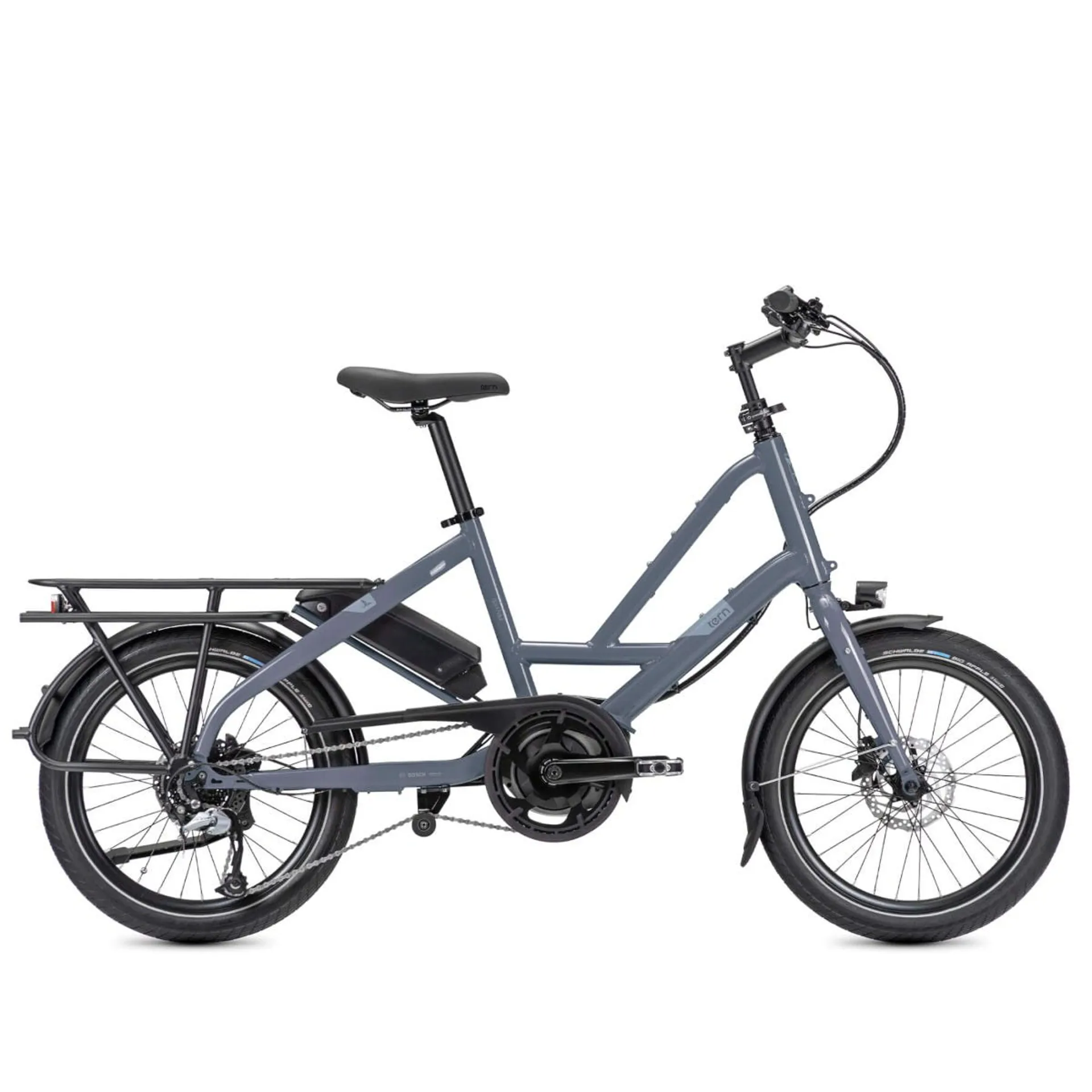

Tern Quick Haul D8 20in Active Plus eBike in Blue Grey

£2,700.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Tern Quick Haul D8 20in Active Plus eBike in Blue Grey

Season:2024

Brand:Tern

Code:TERN2141

Simply capable.

The Quick Haul is a built-to-last compact e-bike that’s ready to tackle your daily grind. Think of it as the multitool of e-bikes: small and unassuming enough to be your daily go-to, yet capable of handling big jobs with finesse.

Designed to be used—Often.

The Quick Haul makes doing stuff by bike practical, easy, and fun—so you’ll reach for it just about every day. It’s designed to help you carry passengers and cargo with ease, and it’s a joy to ride. A compact, space-saving design simplifies storage and transport.

The carrying capacity you need.

The short, low-capacity rear racks found on most city bikes limit how much you can do by bike (and make defaulting to a car more likely). The Quick Haul features an extra-long rear rack with a 50-kg (110 lb) capacity, so you can do a lot more—from hauling groceries to giving your kid a lift to school. Add an optional front rack to do both at once.

What Makes it a D8?

  • Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support
  • 1x8-speed Shimano Altus groupset with trigger shifter

Quick Haul Features:

  • Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack
  • Fits riders 150 - 195 cm (4’11” - 6’5”) tall, with adjustable seatpost and Speedlifter stem (no tools required)
  • Lots of available kid- and cargo-carrying accessories—easily create your perfect setup
  • Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier
  • Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast
  • Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight
Technical Information
  • Speeds:
    1 x 8
  • Weight:
    22.8 kg (50.3 lb)
  • Gear Inches:
    31" - 95" (2.45 - 7.57 m)
  • Frame Sizes:
    One size
  • Distance: Seatpost To Handlebar:
    60 - 64 cm (23.6 - 25.2 in)
  • Distance: Saddle To Pedal:
    68 - 110 cm (26.8 - 43.3 in)
  • Suggested Rider Height:
    150 - 195 cm (59.1 - 76.8 in)
  • Max Gross Vehicle Weight:
    150 kg (330.7 lb)
  • Max Rider Weight:
    120 kg (264.6 lb)
  • Frame:
    Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved: 150 kg
  • Fork:
    Cargo, steel, EFBE approved: 150 kg
  • Stem:
    Speedlifter, 150 mm extension, 3D Forged stem, 31.8
  • Headset:
    TH, cartridge bearings
  • Handlebar:
    Low riser, 31.8, 6061-AL
  • Grips/Bar Tape:
    Velo ergonomic, lock-on
  • Saddle:
    Velo Comfort
  • Seatpost:
    31.6 mm, 6061-AL, micro-adjust clamp
  • Seatpost Clamp:
    Tern Collar
  • Front Brake:
    Shimano, hydraulic disc
  • Rear Brake:
    Shimano, hydraulic disc
  • Brake Levers:
    Shimano, hydraulic disc
  • Brake Cable & Housing:
    Shimano, hydraulic disc
  • Front Hub:
    Shimano disc
  • Rear Hub:
    Shimano disc
  • Spokes And Nipples:
    Stainless steel
  • Rims:
    Kinetix Comp, for disc
  • Tyres:
    Schwalbe Big Apple, 55-406, puncture protection, Reflex
  • Shifter(s):
    Shimano Altus, 1 x 8 spd, trigger
  • Rear Derailleur:
    Shimano Altus Shadow
  • Crankset:
    Tern custom, forged 6061-AL crankarm
  • Cassette/Freewheel:
    Shimano 11-34T, 8 spd
  • Bottom Bracket:
    Motor integrated
  • Chain:
    KMC for eBike, 8 spd
  • Pedals:
    Urban with non-slip surface
  • Shifter Cable & Housing:
    SP
  • Motor:
    Bosch Active Line Plus, 270% Assist, 50 Nm Torque
  • Battery:
    Bosch PowerPack 400
  • Display:
    Bosch Purion
  • Range:
    400 Wh: 54 - 105 km (33.6 - 65.2 mi)
  • Charger:
    Compact Charger, 100-240V, 2A
  • Bell:
    Aluminum
  • Chainguard:
    SKS Chainblade
  • Kickstand:
    Pletscher design, rear mount
  • Luggage Socket:
    Combo Mount
  • Front Light:
    Herrmans, 120 lumens
  • Rear Light:
    Herrmans
  • Fenders:
    Chromeplastic, stainless hardware
  • Rack(s):
    Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50 kg capacity
Sizing Information
Tern Quick Haul sizing chart
